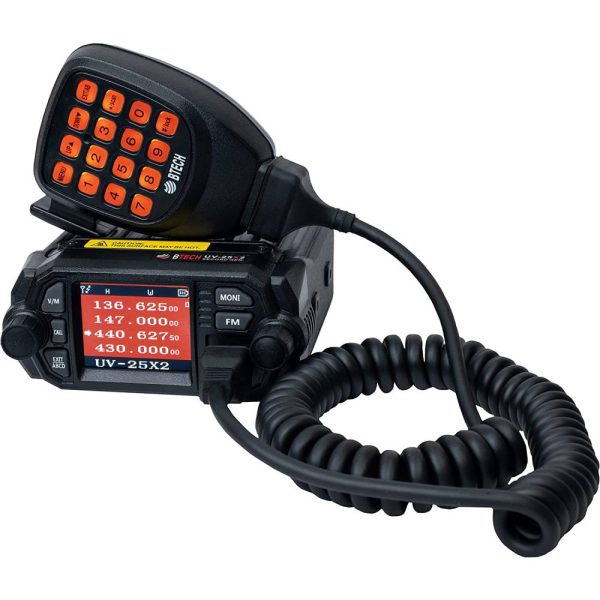

BTech UV-25X2

UV-25X2 (Second Generation) 25W Mobile Two Way Radio

Second Generation

The UV-25X2 is a reliable and powerful mobile two-way radio with new functionality improvements. The second generation release of the UV-25X2 has seen several performance improvements and tweaks, making it an excellent choice for communication needs.

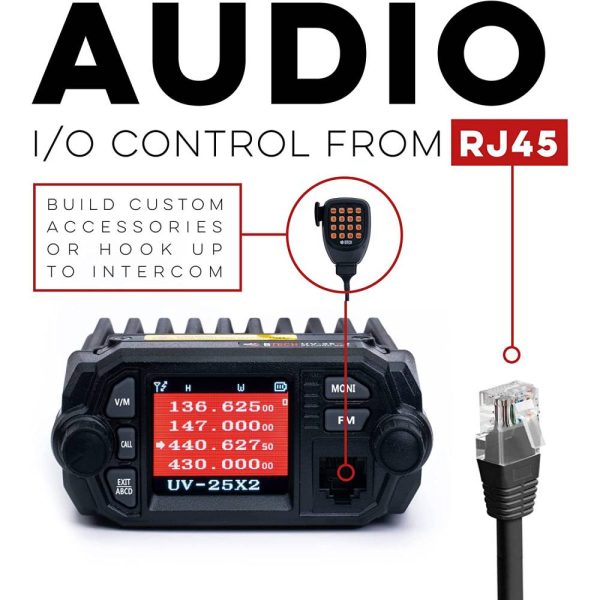

RJ45 Audio Input & Output

The UV-25X2 has new menus and operations that allow audio I/O from its RJ45 microphone port. This allows the UV-25X2 to be installed for custom applications, where users want more control on where the speaker and mic audio is routed to.

VOX Handsfree Support

The UV-25X2 (Second Generation) includes VOX support. VOX allows for handsfree use with your favorite audio accessories or the included handheld microphone.

BTECH Radios are not like other similar looking radios. BTECH radios are designed in the USA with custom firmware and internal hardware differences. BTECH radios are backed with a full US support. A BTECH label means you are getting the best radio available! A few of our highlighted differences are below:

BTECH radios use an upgraded Power Chipset

Customizable PTT Return Times: When handling multiple conversations, the radio allows users to customize if the radio automatically switches to respond to active channels, or allow the user to set one channel default to transmit on.

Dual Synchronize Display Mode: Synchronize Up to 2 Channels – and display both their channel name and channel frequency!

Microphone Audio Gain Settings: Sound great and customize your microphone output for any repeater

Expanded Frequency Range Support

Auto Power Off Function: Save your battery and prevent unnecessary power draining

Channel Mode Editing Settings: Edit saved memory channels on-the-fly; our radio does not require you to delete a channel to make changes

New Scanning Modes: Auto Scan (Scan with a power reboot), Scanning Resume, and Variable Frequency Scanning

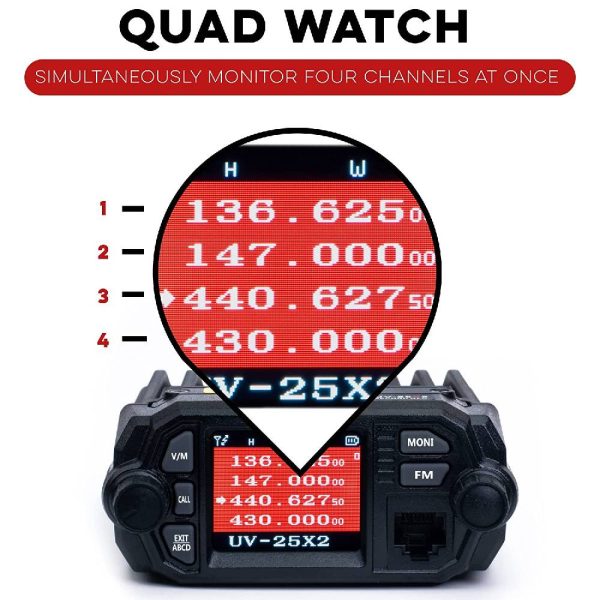

Quad Watch Delay Time: Allows the receiver to stay on the secondary channel longer after incoming transmission – customize the delay up to 50 seconds; This avoids manually channel switching when you are engaged with simultaneous contacts on two frequencies

Randomization Privacy Mode

Technical Specifications

• Bands Supported VHF & UHF Dual Band Radio
• Memory Channel 200 Channels
• Output power VHF: 25W (Peak), 20W (AVG) / Low: 10W; UHF: 20W (Peak) 15W (AVG) / Low: 7W
• Tone Support CTCSS, DCS, 5TONE, 2TONE, DTMF
• Accessory Jack TRRS Speaker Output In Rear, RJ45 Audio Output in Front, K1 Accessories support with included Adaptor
• Additional Features Display Sync, Nuisance Channel Scan Skip, SOS Alarm, NOAA Weather Channels, Transmit Time-Out, Busy Channel Lockout, DTMF Keypad, Adjustable Scanning Modes, Quad Watch, Adjustable Squelch
• Size 3.85 (w) x 1.83 (h) x 4.65 (d) in
• Weight .9lb
•  Antenna Jack UHF (SO239 Connector)
• Frequency Range FM: 87.5-108 MHz; VHF: 136-174 MHz; UHF: 400-520 MHz
